Arduino 开发

本章节包含以下部分，请按需阅读：

Arduino 入门教程
配置开发环境
示例程序

Arduino 入门教程

初次接触 Arduino ESP32 开发，想要快速上手？我们为您准备了一套通用的 入门教程。

请注意：该教程使用 ESP32-S3-Zero 作为教学示例，所有硬件代码均基于其引脚布局。在动手实践前，建议您对照手中的开发板引脚图，确认引脚配置无误。

配置开发环境

1. 安装和配置 Arduino IDE

请参考 安装和配置 Arduino IDE 教程 下载安装 Arduino IDE 并添加 ESP32 支持。

2. 安装库

要运行示例，需要安装对应的库。

库或文件名称	说明	版本	安装方式
lvgl	lvgl 图形库	v8.4.0 或 v9.2.2	“在线”安装
GFX Library for Arduino	GFX 图形化库	v1.6.0	在线”安装
SensorLib	传感器库	v0.3.1	在线”安装

版本兼容性说明

LVGL 及其驱动库的版本之间存在较强的依赖关系。例如，为 LVGL v8 编写的驱动可能不兼容 LVGL v9。为确保示例能够稳定复现，推荐使用上表列出的特定版本。混合使用不同版本的库可能导致编译失败或运行时异常。

安装步骤： 安装方式请参考：Arduino 库管理教程。

示例程序

Arduino 示例程序位于示例程序包的 Arduino 目录中。

示例程序	基础例程说明
01_GPIO	实现控制指定的左右共 20 个 GPIO 引脚依次循环进行高低电平切换，并串口打印每个引脚的电平变化状态
02_BlinkRGB	实现控制 RGB 呈流水灯动态效果
03_GetchipID	实现每隔三秒获取并打印 ESP32-c5 芯片的硬件信息，包括芯片型号、版本、核心数量以及芯片 ID
04_WIFI_AP	实现通过 ESP32-C5-N16R4 开发板设置为 AP 热点 (2.4G)，允许其他 WiFi 设备接入联网
05_WIFI_STA	实现连接指定 WiFi 并打印连接信息，每 5 分钟调用心知天气 API 获取数据后格式化打印响应，且支持 WiFi 断线自动重连。
06_WIFI_DHCP	实现通过 ESP32-C5-N16R4 开发板使用 WIFI 连接，DHCP 分配 IP 地址
07_WIFI_StaticIP	实现通过 ESP32-C5-N16R4 开发板使用 WIFI 连接，静态分配 IP 地址

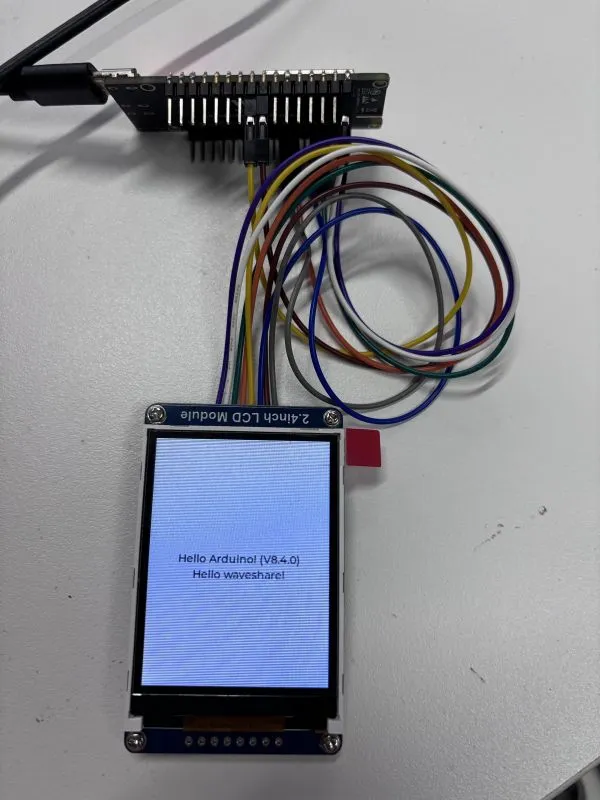

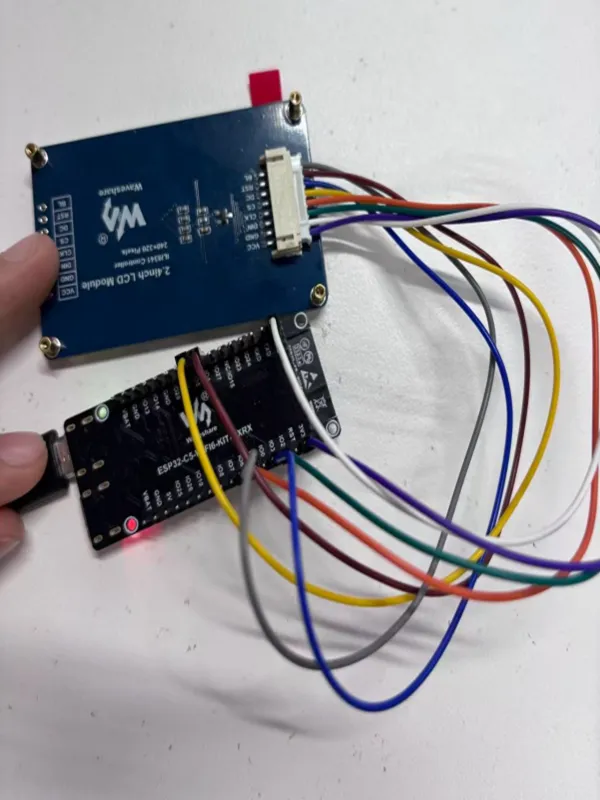

08_lvgl8.4.0_demo	实现通过 2.4inch LCD Module 实现文本效果

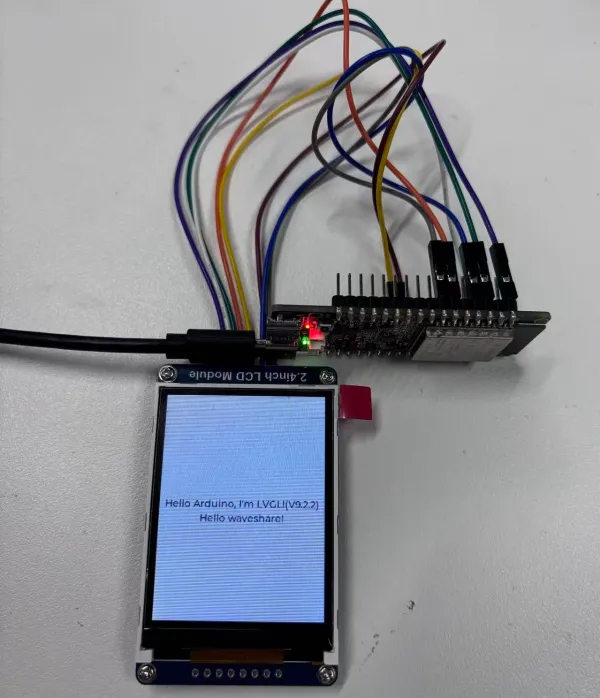

09_lvgl9.2.2_demo	实现通过 2.4inch LCD Module 实现文本效果

01_GPIO

该程序实现对左右共 20 个指定 GPIO 引脚的电平控制：左侧 11 个引脚依次循环执行 “高电平→低电平” 切换，右侧 9 个引脚依次循环执行 “低电平→高电平” 切换；每个电平状态持续 300 毫秒，且通过串口实时打印各引脚的电平变化状态。

代码

01_GPIO.ino

/*
  author: liangjingheng
  date: 2025-10-14
  company: waveshare
*/
#define NUM_LEFT 11  // Number of left GPIO pins
#define NUM_RIGHT 9 // Number of right GPIO pins

// Left GPIO pins
const int left_gpios[NUM_LEFT] = {0, 1, 2, 3, 6, 7, 8, 9, 10, 25, 26};
// Right GPIO pins
const int right_gpios[NUM_RIGHT] = {24, 23, 15, 27, 5, 4, 28, 14, 13};

void setup() {
  Serial.begin(115200); // Initialize serial port (for printing information)

  // Initialize left GPIOs: output mode, default low level
  for (int i = 0; i < NUM_LEFT; i++) {
    pinMode(left_gpios[i], OUTPUT);
    digitalWrite(left_gpios[i], LOW);
    Serial.printf("Left GPIO %d initialized to LOW.\n", left_gpios[i]);
  }

  // Initialize right GPIOs: output mode, default high level
  for (int i = 0; i < NUM_RIGHT; i++) {
    pinMode(right_gpios[i], OUTPUT);
    digitalWrite(right_gpios[i], HIGH);
    Serial.printf("Right GPIO %d initialized to HIGH.\n", right_gpios[i]);
  }
}

void loop() {
  // Left GPIOs: HIGH → LOW (execute one by one)
  for (int i = 0; i < NUM_LEFT; i++) {
    digitalWrite(left_gpios[i], HIGH);
    Serial.printf("Left GPIO %d set to HIGH.\n", left_gpios[i]);
    delay(300); // Delay for 300ms to ensure visibility of the effect

    digitalWrite(left_gpios[i], LOW);
    Serial.printf("Left GPIO %d set to LOW.\n", left_gpios[i]);
    delay(300);
  }

  // Right GPIOs: LOW → HIGH (execute one by one)
  for (int i = 0; i < NUM_RIGHT; i++) {
    digitalWrite(right_gpios[i], LOW);
    Serial.printf("Right GPIO %d set to LOW.\n", right_gpios[i]);
    delay(300);

    digitalWrite(right_gpios[i], HIGH);
    Serial.printf("Right GPIO %d set to HIGH.\n", right_gpios[i]);
    delay(300);
  }
}

代码解释

setup() 函数：
- 初始化串口：通过 Serial.begin(115200) 配置串口波特率为 115200，用于打印 GPIO 状态信息。
- 配置左侧 GPIO：遍历包含 11 个引脚（0、1、2、3、6、7、8、9、10、25、26）的数组，将每个引脚设为输出模式，默认输出低电平，并打印初始化状态。
- 配置右侧 GPIO：遍历包含 9 个引脚（24、23、15、27、5、4、28、14、13）的数组，将每个引脚设为输出模式，默认输出高电平，并打印初始化状态。
loop () 函数：
- 左侧 GPIO控制：逐个将引脚从低电平切换为高电平，打印状态后延迟 300ms；再切换回低电平，打印状态后延迟 300ms。
- 右侧 GPIO 控制：逐个将引脚从高电平切换为低电平，打印状态后延迟 300ms；再切换回高电平，打印状态后延迟 300ms。

02_BlinkRGB

本示例实现控制 RGB 灯呈流水灯动态效果

代码

02_BlinkRGB.ino

/*
  BlinkRGB

  Demonstrates usage of onboard RGB LED on some ESP dev boards.

  Calling digitalWrite(RGB_BUILTIN, HIGH) will use hidden RGB driver.

  RGBLedWrite demonstrates control of each channel:
  void rgbLedWrite(uint8_t pin, uint8_t red_val, uint8_t green_val, uint8_t blue_val)

  WARNING: After using digitalWrite to drive RGB LED it will be impossible to drive the same pin
    with normal HIGH/LOW level
*/
//#define RGB_BRIGHTNESS 64 // Change white brightness (max 255)

// the setup function runs once when you press reset or power the board

void setup() {
  // No need to initialize the RGB LED
}

// the loop function runs over and over again forever
void loop() {
#ifdef RGB_BUILTIN
  digitalWrite(RGB_BUILTIN, HIGH);  // Turn the RGB LED white
  delay(1000);
  digitalWrite(RGB_BUILTIN, LOW);  // Turn the RGB LED off
  delay(1000);

  rgbLedWrite(RGB_BUILTIN, RGB_BRIGHTNESS, 0, 0);  // Red
  delay(1000);
  rgbLedWrite(RGB_BUILTIN, 0, RGB_BRIGHTNESS, 0);  // Green
  delay(1000);
  rgbLedWrite(RGB_BUILTIN, 0, 0, RGB_BRIGHTNESS);  // Blue
  delay(1000);
  rgbLedWrite(RGB_BUILTIN, 0, 0, 0);  // Off / black
  delay(1000);
#endif
}

代码解释

setup () 函数：
- 无需对 RGB LED 做额外初始化操作，因为 RGB 灯的控制可通过后续digitalWrite或rgbLedWrite直接驱动。
loop () 函数：
- 循环实现 RGB 灯的多色切换与亮灭控制通过 digitalWrite(RGB_BUILTIN, HIGH) 点亮 RGB 灯为白色，延迟 1 秒后，用 digitalWrite(RGB_BUILTIN, LOW) 熄灭 RGB 灯，再延迟 1 秒；
- 调用 rgbLedWrite 函数依次单独点亮红色、绿色、蓝色，每种颜色保持 1 秒；
- 最后用 rgbLedWrite(RGB_BUILTIN, 0, 0, 0) 熄灭 RGB 灯，延迟 1 秒后重复整个循环。

03_GetchipID

本示例实现每隔三秒获取并打印 ESP32 芯片的硬件信息，包括芯片型号、版本、核心数量以及芯片 ID

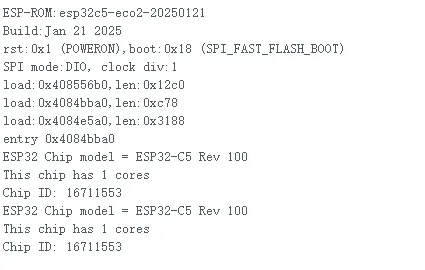

示例 3 图示

代码

03_GetchipID.ino

/* The true ESP32 chip ID is essentially its MAC address.
This sketch provides an alternate chip ID that matches
the output of the ESP.getChipId() function on ESP8266
(i.e. a 32-bit integer matching the last 3 bytes of
the MAC address. This is less unique than the
MAC address chip ID, but is helpful when you need
an identifier that can be no more than a 32-bit integer
(like for switch...case).

created 2020-06-07 by cweinhofer
with help from Cicicok */

uint32_t chipId = 0;

void setup() {
  Serial.begin(115200);
}

void loop() {
  for (int i = 0; i < 17; i = i + 8) {
    chipId |= ((ESP.getEfuseMac() >> (40 - i)) & 0xff) << i;
  }

  Serial.printf("ESP32 Chip model = %s Rev %d\n", ESP.getChipModel(), ESP.getChipRevision());
  Serial.printf("This chip has %d cores\n", ESP.getChipCores());
  Serial.print("Chip ID: ");
  Serial.println(chipId);

  delay(3000);
}

代码解释

setup () 函数：
- 初始化串口通信通过 Serial.begin(115200) 配置串口波特率为 115200，为后续打印芯片信息提供输出通道。
loop () 函数：
- 打印芯片信息：调用 ESP.getChipModel()、ESP.getChipRevision()、ESP.getChipCores() 分别获取并打印芯片型号、版本、核心数；再打印计算得到的 chipId。
- 周期性执行：通过 delay(3000) 延迟 3 秒，重复上述芯片 ID 计算与信息打印流程。

04_WIFI_AP

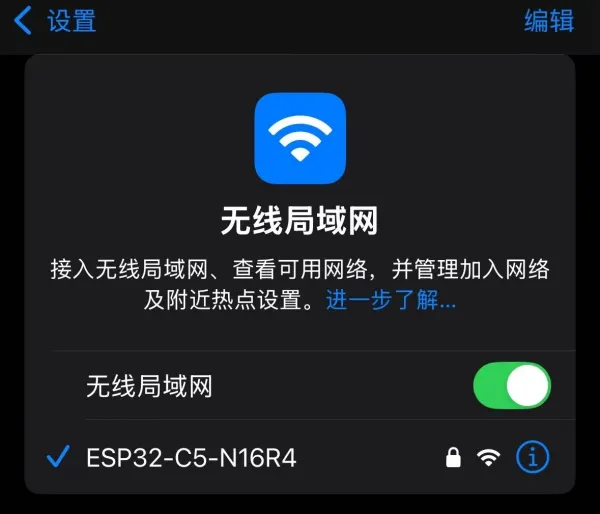

本示例实现 ESP32-C5-N16R4 开发板创建名为 “ESP32-C5-N16R4”、密码为 “waveshare” 的 WiFi 热点，监控设备的连接 / 断开状态，并通过串口打印设备的 MAC 地址及分配的 IP 地址。

示例 4 图示

代码

04_WIFI_AP.ino

/**
 ******************************************************************************
 * @file     WiFi_AP.ino
 * @brief    ESP32-C5-N16R4 act as WiFi Access Point and monitor client connections
 * @version  V1.1
 * @date     2025-10-14
 * @author   liangjingheng
 * @company  Waveshare
 * @license  MIT
 ******************************************************************************
 * Enhanced Features:
 * 1. Create WiFi Access Point with specified SSID ("ESP32-C5-N16R4") and password
 * 2. Monitor client connection/disconnection events via WiFi event handler
 * 3. Print connected device's MAC address, assigned IP address via serial port
 * 4. Provide real-time status feedback for network events
 ******************************************************************************
 */

#include <WiFi.h>
#include <esp_wifi.h>  // ESP-IDF library to access connected client info

// WiFi Access Point credentials
const char* ssid     = "ESP32-C5-N16R4";   //your ap name
const char* password = "waveshare";       // your AP password

// Convert MAC address from byte array to readable string (XX:XX:XX:XX:XX:XX)
String formatMacAddress(const uint8_t* mac) {
    char macStr[18];
    snprintf(macStr, sizeof(macStr), "%02X:%02X:%02X:%02X:%02X:%02X",
             mac[0], mac[1], mac[2], mac[3], mac[4], mac[5]);
    return String(macStr);
}

// Handle WiFi events (connection, disconnection, IP assignment)
void WiFiEvent(WiFiEvent_t event, WiFiEventInfo_t info) {
    switch (event) {
        case ARDUINO_EVENT_WIFI_AP_STACONNECTED:
            // Print MAC address when a new device connects to AP
            Serial.println("New device connected:");
            Serial.print("MAC Address: ");
            Serial.println(formatMacAddress(info.wifi_ap_staconnected.mac));
            break;

        case ARDUINO_EVENT_WIFI_AP_STADISCONNECTED:
            // Print message when a device disconnects from AP
            Serial.println("Device disconnected from AP");
            break;

        case ARDUINO_EVENT_WIFI_AP_STAIPASSIGNED:
            // Print IP address assigned to connected device
            Serial.print("Assigned IP to device: ");
            Serial.println(IPAddress(info.got_ip.ip_info.ip.addr));
            break;

        default:
            break;
    }
}

void setup() {
    // Initialize serial communication (115200 baud rate) for debugging
    Serial.begin(115200);

    // Start WiFi Access Point with specified SSID and password
    WiFi.softAP(ssid, password);

    // Register event handler to monitor client connection status
    WiFi.onEvent(WiFiEvent);

    // Short delay to stabilize WiFi AP setup
    delay(1000);

    // Print AP initialization status to serial console
    Serial.println("WiFi Access Point initialized successfully");
    Serial.print("AP SSID: ");
    Serial.println(ssid);
    Serial.print("AP Password: ");
    Serial.println(password);
}

void loop() {
    // No active operation in loop; CPU remains idle
    delay(1000);  // Small delay to reduce unnecessary CPU usage
}

代码解释

setup() ：
- 初始化串口：通过 Serial.begin(115200) 开启串口通信，用于打印调试信息。
- 启动 WiFi 接入点：调用 WiFi.softAP(ssid, password)，将设备设置为 AP 模式（SSID 为"ESP32-C5-N16R4"，密码为"waveshare"）。
- 注册事件处理器：通过 WiFi.onEvent(WiFiEvent) 注册自定义事件处理函数，监控客户端连接 / 断开、IP 分配等 WiFi 事件。
- 打印初始化状态：延迟 1 秒后，向串口打印 AP 的 SSID、密码及 “初始化成功” 提示。
loop() ：
- 仅通过 delay(1000) 执行 1 秒延迟，减少 CPU 不必要的资源消耗。

05_WIFI_STA

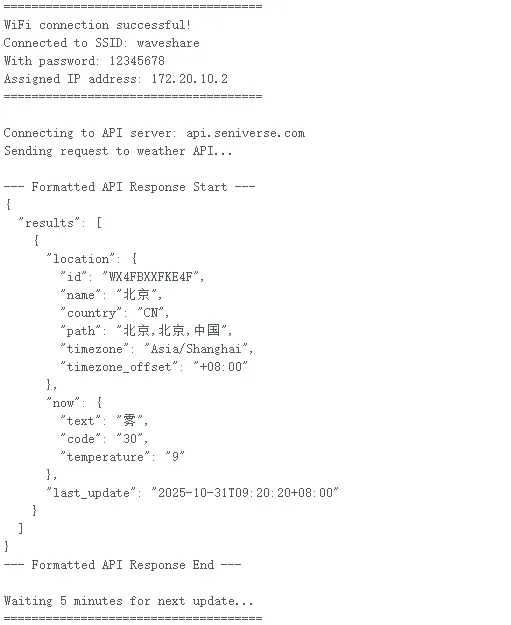

本示例实现 ESP32-C5-N16R4 开发板可连接指定 WiFi（SSID：waveshare，密码：12345678）并打印连接信息，调用心知天气 API 获取数据后格式化输出响应，同时支持 WiFi 断线自动重连，每 5 分钟自动请求一次 API。

代码

05_WIFI_STA .ino

/**
 ******************************************************************************
 * @file     WiFi_Weather_Enhanced.ino
 * @brief    ESP32-c5-n16r4 connect to WiFi and get weather data from Seniverse API
 * @version  V1.1
 * @date     2025-10-14
 * @author   liangjingheng
 * @company  Waveshare
 * @license  MIT
 ******************************************************************************
 * Enhanced Features:
 * 1. Print connected WiFi SSID and password
 * 2. Better formatted API response with clear line breaks
 * 3. Connect to WiFi and get weather data from Seniverse API
 ******************************************************************************
 */

#include <WiFi.h>
#include <WiFiClientSecure.h>

// WiFi credentials
const char* ssid = "waveshare";
const char* password = "12345678";

// Seniverse API configuration
const char* request = "GET /v3/weather/now.json?key=SbslwZ6X47ih3u-bX&location=beijing&language=zh-Hans&unit=c HTTP/1.1\r\nhost:api.seniverse.com\r\n\r\n";
const char* host = "api.seniverse.com";
const uint16_t httpsPort = 443;

WiFiClientSecure client;

void setup() {
  // Initialize serial communication
  Serial.begin(115200);
  while (!Serial);  // Wait for serial port to connect

  // Connect to WiFi
  Serial.println("Connecting to WiFi...");
  WiFi.begin(ssid, password);

  // Wait for WiFi connection
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }

  // Print connection success message with WiFi details
  Serial.println("\n");
  Serial.println("=====================================");
  Serial.println("WiFi connection successful!");
  Serial.print("Connected to SSID: ");
  Serial.println(ssid);
  Serial.print("With password: ");
  Serial.println(password);
  Serial.print("Assigned IP address: ");
  Serial.println(WiFi.localIP());
  Serial.println("=====================================\n");
}

void loop() {
  // Check WiFi connection status
  if (WiFi.status() != WL_CONNECTED) {
    Serial.println("WiFi disconnected, reconnecting...");
    WiFi.reconnect();
    delay(1000);
    return;
  }

  // Connect to Seniverse API server
  Serial.print("Connecting to API server: ");
  Serial.println(host);

  client.setInsecure();  // Skip certificate verification for testing
  if (!client.connect(host, httpsPort)) {
    Serial.println("Connection to server failed!");
    delay(5000);  // Retry after 5 seconds
    return;
  }

  // Send API request
  Serial.println("Sending request to weather API...");
  client.print(request);

  // Wait for response with timeout
  unsigned long timeout = millis();
  while (client.available() == 0) {
    if (millis() - timeout > 5000) {  // 5 seconds timeout
      Serial.println("Timeout waiting for API response!");
      client.stop();
      delay(5000);
      return;
    }
  }

  // Read and print API response with proper line breaks
  Serial.println("\n--- API Response Start ---");
  while (client.available()) {
    String line = client.readStringUntil('\n');
    Serial.println(line);  // Using println to ensure each line is properly separated
  }
  Serial.println("--- API Response End ---\n");

  // Close connection and wait for next request
  client.stop();
  Serial.println("Waiting 5 minutes for next update...");
  Serial.println("=====================================\n");
  delay(300000);  // 5 minutes in milliseconds
}

}

代码解释

setup() ：
- 初始化串口：通过 Serial.begin(115200) 开启串口通信，等待串口连接就绪。
- 连接 WiFi：调用 WiFi.begin(ssid, password) 连接指定 WiFi（SSID："waveshare"，密码："12345678"），通过循环等待- 连接成功（期间打印。提示）。
- 打印连接信息：连接成功后，向串口输出 WiFi 连接详情，包括连接的 SSID、密码及设备分配的 IP 地址，用分隔线格式化显示。
loop() ：
- WiFi 状态维护：检查 WiFi 连接状态，若断开则调用 WiFi.reconnect() 重新连接，避免因网络中断导致功能失效。
- 连接 API 服务器：通过 client.connect(host, httpsPort) 连接 Seniverse API 服务器（api.seniverse.com，端口 443），跳过证书验证（client.setInsecure()）用于测试。
- 发送与接收请求：通过 client.print(request) 发送天气数据请求，等待响应（设置 5 秒超时），读取并按行打印响应内容。
- 定时循环：关闭连接后，通过 delay(300000) 等待 5 分钟，再重复执行上述流程，实现定时获取天气数据的效果。

06_WIFI_DHCP

本示例演示了通过 ESP32-C5-N16R4 开发板使用 WIFI 连接，DHCP 分配 IP 地址。

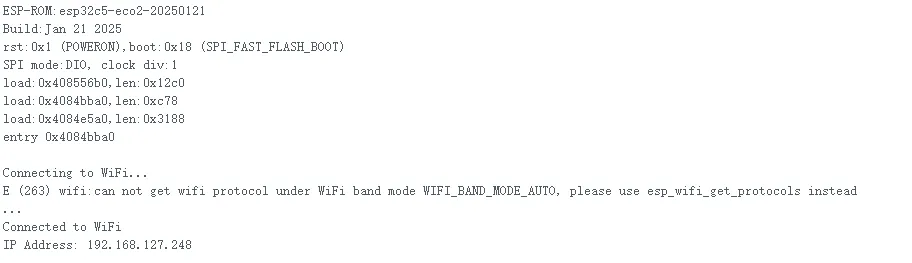

示例 6 图示

代码

06_WIFI_DHCP.ino

/**
 ******************************************************************************
 * @file     WiFi_Connection.ino
 * @brief    ESP32 connect to specified Wi-Fi network and print assigned IP address
 * @version  V1.1
 * @date     2025-10-14
 * @author   liangjingheng
 * @company  Waveshare
 * @license  MIT
 ******************************************************************************
 * Features:
 * 1. Connect ESP32 to target Wi-Fi network using provided SSID and password
 * 2. Print connection progress and status via serial monitor
 * 3. Display assigned IP address after successful connection
 * 4. Maintain Wi-Fi connection in loop function
 ******************************************************************************
 */
#include <WiFi.h>  // Include Wi-Fi library

// Replace with your Wi-Fi network credentials
const char *ssid = "waveshare";                // Your WiFi SSID
const char *password = "12345678";            // Your WiFi password

void setup() {
  // Start serial communication
  Serial.begin(115200);
  while (!Serial) {
    ; // Wait for the serial port to be ready
  }

  Serial.println();
  Serial.println("Connecting to WiFi...");

  // Begin Wi-Fi connection
  WiFi.begin(ssid, password);

  // Wait until connected
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }

  // Connection successful
  Serial.println();
  Serial.println("Connected to WiFi");
  Serial.print("IP Address: ");
  Serial.println(WiFi.localIP()); // Print assigned IP address
}

void loop() {
  // Keep connection alive (optional: can be used to add functionality)
  delay(1000);
}

代码解释

WIFI 网络配置：
- 需把代码中的 WIFI 和密码对应改成自己环境中的 WIFI 路由器中的名称和密码。如果没有的话，可以手机创建一个同名的热点，供开发板连接测试。

07_WIFI_StaticIP

本示例展示如何通过 ESP32-C5-N16R4 开发板使用 WIFI 连接，静态分配 IP 地址。

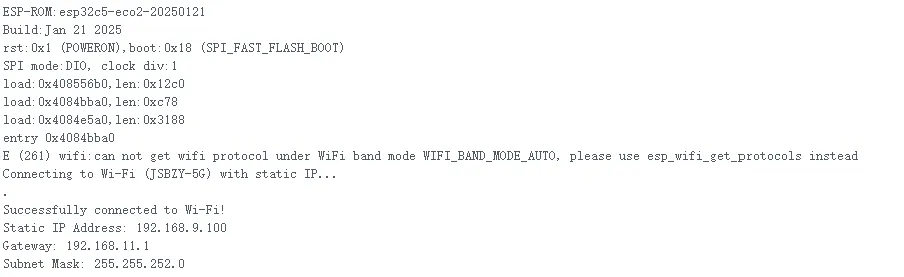

示例 7 图示

代码

07_WIFI_StaticIP.ino

/**
 ******************************************************************************
 * @file     WiFi_StaticIP.ino
 * @brief    ESP32 connect to Wi-Fi with static IP configuration
 * @version  V1.2
 * @date     2025-10-14
 * @author   liangjingheng
 * @company  Waveshare
 * @license  MIT
 ******************************************************************************
 * Features:
 * 1. Connect ESP32 to "JSBZY-5G" Wi-Fi network with static IP
 * 2. Configure static IP, gateway, subnet mask, and DNS matching network settings
 * 3. Print connection status and network info via serial monitor
 * 4. Auto-reconnect if Wi-Fi connection drops
 ******************************************************************************
 */

#include <WiFi.h>

// Wi-Fi credentials (match network in screenshot)
const char *ssid = "waveshare";           // your Wi-Fi SSID
const char *password = "12345678";        // your Wi-Fi password

// Static IP configuration (matched to screenshot's network parameters)
IPAddress local_ip(192, 168, 9, 100);   // Static IP for ESP32
IPAddress gateway(192, 168, 11, 1);    // Gateway IP
IPAddress subnet(255, 255, 252, 0);    // Subnet mask
IPAddress dns(192, 168, 11, 1);        // DNS server

void setup() {
  // Initialize serial communication (115200 baud rate)
  Serial.begin(115200);
  while (!Serial) {
    ; // Wait for serial port to initialize (for boards like Leonardo)
  }

  // Set Wi-Fi mode to Station (client mode)
  WiFi.mode(WIFI_STA);

  // Apply static IP configuration
  WiFi.config(local_ip, gateway, subnet, dns);

  // Start Wi-Fi connection
  WiFi.begin(ssid, password);
  Serial.println("Connecting to Wi-Fi (JSBZY-5G) with static IP...");

  // Wait for connection with retry logic
  int retryCount = 0;
  const int maxRetries = 15; // Retry for 15 seconds (15 * 1000ms)
  while (WiFi.status() != WL_CONNECTED && retryCount < maxRetries) {
    delay(1000);
    Serial.print(".");
    retryCount++;
  }

  // Print connection result
  if (WiFi.status() == WL_CONNECTED) {
    Serial.println("\nSuccessfully connected to Wi-Fi!");
    Serial.print("Static IP Address: ");
    Serial.println(WiFi.localIP());
    Serial.print("Gateway: ");
    Serial.println(gateway);
    Serial.print("Subnet Mask: ");
    Serial.println(subnet);
  } else {
    Serial.println("\nFailed to connect to Wi-Fi!");
    Serial.print("WiFi Status Code: ");
    Serial.println(WiFi.status()); // Print code for debugging (e.g., 6 = AUTH_FAIL)
  }
}

void loop() {
  // Periodically check Wi-Fi connection and auto-reconnect
  if (WiFi.status() != WL_CONNECTED) {
    Serial.println("Wi-Fi disconnected, attempting reconnection...");
    WiFi.begin(ssid, password); // Re-initiate connection
    int retry = 0;
    while (WiFi.status() != WL_CONNECTED && retry < 5) {
      delay(1000);
      Serial.print(".");
      retry++;
    }
    if (WiFi.status() == WL_CONNECTED) {
      Serial.println("\nReconnected to Wi-Fi!");
      Serial.print("Current IP: ");
      Serial.println(WiFi.localIP());
    }
  }
  delay(5000); // Check connection every 5 seconds
}

代码解释

WIFI 网络配置：
- 需把代码中的 WIFI 和密码对应改成自己环境中的 WIFI 路由器中的名称和密码。如果没有的话，可以手机创建一个同名的热点，供开发板连接测试。
- 需配置好网络 IP 相关配置

08_lvgl8.4.0_demo

本示例演示了通过 lvgl_v8.4.0 以及 GFX_Library_for_Arduino（GFX 图形化库）和 SensorLib（传感器库）实现文本显示效果

硬件连接

2.4inch LCD Module	ESP32-C5-N16R4
VCC	3V3
GND	GND
DIN	GPIO2
CLK	GPIO1
CS	GPIO5
D/C	GPIO3
RST	GPIO4
BL	GPIO6

代码

08_lvgl8.4.0_demo.ino

/*
 * @file    LVGL8.4.0_demo.ino
 * @brief   ESP32-C5 drives 2.4-inch ILI9341 display and shows text labels via LVGL
 * @version V1.0
 * @date    2025-10-14
 * @author  liangjingheng
 * @company Waveshare
 * @license MIT
 ********************************************************************************/

/*Using LVGL with Arduino requires some extra steps:
 *Be sure to read the docs here: https://docs.lvgl.io/master/get-started/platforms/arduino.html  */

/*To use the built-in examples and demos of LVGL uncomment the includes below respectively.
 *You also need to copy `lvgl/examples` to `lvgl/src/examples`. Similarly for the demos `lvgl/demos` to `lvgl/src/demos`.
 Note that the `lv_examples` library is for LVGL v7 and you shouldn't install it for this version (since LVGL v8)
 as the examples and demos are now part of the main LVGL library. */

// #include <examples/lv_examples.h>
// #include <demos/lv_demos.h>

// #define DIRECT_MODE // Uncomment to enable full frame buffer

#include <lvgl.h>
#include <Arduino_GFX_Library.h>

#define LCD_SCK 1
#define LCD_DIN 2
#define LCD_CS 5
#define LCD_DC 3
#define LCD_RST 4
#define LCD_BL 6

#define GFX_BL LCD_BL

Arduino_DataBus *bus = new Arduino_HWSPI(LCD_DC, LCD_CS, LCD_SCK, LCD_DIN);
Arduino_GFX *gfx = new Arduino_ILI9341(
  bus, LCD_RST, 0 /* rotation */, false /* IPS */
);

uint32_t screenWidth;
uint32_t screenHeight;
uint32_t bufSize;
lv_disp_draw_buf_t draw_buf;
lv_color_t *disp_draw_buf1;
lv_color_t *disp_draw_buf2;
lv_disp_drv_t disp_drv;

/* Display flushing */
void my_disp_flush(lv_disp_drv_t *disp_drv, const lv_area_t *area, lv_color_t *color_p) {
  uint32_t w = (area->x2 - area->x1 + 1);
  uint32_t h = (area->y2 - area->y1 + 1);

#if (LV_COLOR_16_SWAP != 0)
  gfx->draw16bitBeRGBBitmap(area->x1, area->y1, (uint16_t *)&color_p->full, w, h);
#else
  gfx->draw16bitRGBBitmap(area->x1, area->y1, (uint16_t *)&color_p->full, w, h);
#endif

  lv_disp_flush_ready(disp_drv);
}

void setup() {

  Serial.begin(115200);
  Serial.println("Arduino_GFX Hello World example");

  // Init Display
  if (!gfx->begin()) {
    Serial.println("gfx->begin() failed!");
  }

  gfx->fillScreen(RGB565_BLACK);

#ifdef GFX_BL
  pinMode(GFX_BL, OUTPUT);
  digitalWrite(GFX_BL, HIGH);
#endif

  lv_init();

  screenWidth = gfx->width();
  screenHeight = gfx->height();

  bufSize = screenWidth * 120;

  disp_draw_buf1 = (lv_color_t *)heap_caps_malloc(bufSize * 2, MALLOC_CAP_DEFAULT | MALLOC_CAP_8BIT);

  disp_draw_buf2 = (lv_color_t *)heap_caps_malloc(bufSize * 2, MALLOC_CAP_DEFAULT | MALLOC_CAP_8BIT);

  lv_disp_draw_buf_init(&draw_buf, disp_draw_buf1, disp_draw_buf2, bufSize);

  /* Initialize the display */
  lv_disp_drv_init(&disp_drv);
  /* Change the following line to your display resolution */
  disp_drv.hor_res = screenWidth;
  disp_drv.ver_res = screenHeight;
  disp_drv.flush_cb = my_disp_flush;
  disp_drv.draw_buf = &draw_buf;

  lv_disp_drv_register(&disp_drv);

  /* Initialize the (dummy) input device driver */
  lv_obj_t *label = lv_label_create(lv_scr_act());
  lv_label_set_text(label, "Hello Arduino! (V" GFX_STR(LVGL_VERSION_MAJOR) "." GFX_STR(LVGL_VERSION_MINOR) "." GFX_STR(LVGL_VERSION_PATCH) ")");
  lv_obj_align(label, LV_ALIGN_CENTER, 0, 0);
  /*hello waveshare label*/
  lv_obj_t *label_waveshare = lv_label_create(lv_scr_act());
  lv_label_set_text(label_waveshare, "Hello waveshare!");
  lv_obj_align(label_waveshare, LV_ALIGN_CENTER, 0, 20);

  /* Option 3: Or try out a demo. Don't forget to enable the demos in lv_conf.h. E.g. LV_USE_DEMOS_WIDGETS*/
  // lv_demo_widgets();
  // lv_demo_benchmark();
  // lv_demo_music();

  Serial.println("Setup done");
}

void loop() {
  lv_timer_handler(); /* let the GUI do its work */
  delay(1);
}

09_lvgl9.2.2_demo

本示例展示通过 lvgl_v9.2.2 以及 GFX_Library_for_Arduino（GFX 图形化库）和 SensorLib（传感器库）实现文本显示效果

硬件连接

2.4inch LCD Module	ESP32-C5-N16R4
VCC	3V3
GND	GND
DIN	GPIO2
CLK	GPIO1
CS	GPIO5
D/C	GPIO3
RST	GPIO4
BL	GPIO6

代码

09_lvgl9.2.2_demo.ino

/*
 * @file    LVGL9.2.2_demo.ino
 * @brief   ESP32-C5 drives 2.4-inch ILI9341 display and shows text labels via LVGL
 * @version V1.0
 * @date    2025-10-14
 * @author  liangjingheng
 * @company Waveshare
 * @license MIT
 ********************************************************************************/
/*Using LVGL with Arduino requires some extra steps:
 *Be sure to read the docs here: https://docs.lvgl.io/master/get-started/platforms/arduino.html  */

/*To use the built-in examples and demos of LVGL uncomment the includes below respectively.
 *You also need to copy `lvgl/examples` to `lvgl/src/examples`. Similarly for the demos `lvgl/demos` to `lvgl/src/demos`.
 *Note that the `lv_examples` library is for LVGL v7 and you shouldn't install it for this version (since LVGL v8)
 *as the examples and demos are now part of the main LVGL library. */

// #include <examples/lv_examples.h>
// #include <demos/lv_demos.h>

// #define DIRECT_RENDER_MODE // Uncomment to enable full frame buffer
#include <lvgl.h>
#include <Arduino_GFX_Library.h>

#define LCD_SCK 1
#define LCD_DIN 2
#define LCD_CS 5
#define LCD_DC 3
#define LCD_RST 4
#define LCD_BL 6

#define GFX_BL LCD_BL

Arduino_DataBus *bus = new Arduino_HWSPI(LCD_DC, LCD_CS, LCD_SCK, LCD_DIN);
Arduino_GFX *gfx = new Arduino_ILI9341(
  bus, LCD_RST, 0 /* rotation */, false /* IPS */
);

uint32_t screenWidth;
uint32_t screenHeight;
uint32_t bufSize;
lv_display_t *disp;
lv_color_t *disp_draw_buf;

#if LV_USE_LOG != 0
void my_print(lv_log_level_t level, const char *buf)
{
  LV_UNUSED(level);
  Serial.println(buf);
  Serial.flush();
}
#endif

uint32_t millis_cb(void)
{
  return millis();
}

/* LVGL calls it when a rendered image needs to copied to the display*/
void my_disp_flush(lv_display_t *disp, const lv_area_t *area, uint8_t *px_map)
{
#ifndef DIRECT_RENDER_MODE
  uint32_t w = lv_area_get_width(area);
  uint32_t h = lv_area_get_height(area);

  gfx->draw16bitRGBBitmap(area->x1, area->y1, (uint16_t *)px_map, w, h);
#endif // #ifndef DIRECT_RENDER_MODE

  /*Call it to tell LVGL you are ready*/
  lv_disp_flush_ready(disp);
}

void setup()
{
#ifdef DEV_DEVICE_INIT
  DEV_DEVICE_INIT();
#endif

  Serial.begin(115200);
  // Serial.setDebugOutput(true);
  // while(!Serial);
  Serial.println("Arduino_GFX LVGL_Arduino_v9 example ");
  String LVGL_Arduino = String('V') + lv_version_major() + "." + lv_version_minor() + "." + lv_version_patch();
  Serial.println(LVGL_Arduino);

  // Init Display
  if (!gfx->begin())
  {
    Serial.println("gfx->begin() failed!");
  }
  gfx->fillScreen(RGB565_BLACK);

#ifdef GFX_BL
  pinMode(GFX_BL, OUTPUT);
  digitalWrite(GFX_BL, HIGH);
#endif

  lv_init();

  /*Set a tick source so that LVGL will know how much time elapsed. */
  lv_tick_set_cb(millis_cb);

  /* register print function for debugging */
#if LV_USE_LOG != 0
  lv_log_register_print_cb(my_print);
#endif

  screenWidth = gfx->width();
  screenHeight = gfx->height();

#ifdef DIRECT_RENDER_MODE
  bufSize = screenWidth * screenHeight;
#else
  bufSize = screenWidth * 120;
#endif

  disp_draw_buf = (lv_color_t *)heap_caps_malloc(bufSize * 2, MALLOC_CAP_INTERNAL | MALLOC_CAP_8BIT);
  if (!disp_draw_buf)
  {
    // remove MALLOC_CAP_INTERNAL flag try again
    disp_draw_buf = (lv_color_t *)heap_caps_malloc(bufSize * 2, MALLOC_CAP_8BIT);
  }

  if (!disp_draw_buf)
  {
    Serial.println("LVGL disp_draw_buf allocate failed!");
  }
  else
  {
    disp = lv_display_create(screenWidth, screenHeight);
    lv_display_set_flush_cb(disp, my_disp_flush);
#ifdef DIRECT_RENDER_MODE
    lv_display_set_buffers(disp, disp_draw_buf, NULL, bufSize * 2, LV_DISPLAY_RENDER_MODE_DIRECT);
#else
    lv_display_set_buffers(disp, disp_draw_buf, NULL, bufSize * 2, LV_DISPLAY_RENDER_MODE_PARTIAL);
#endif

    /*Initialize the (dummy) input device driver*/
    // lv_indev_t *indev = lv_indev_create();
    // lv_indev_set_type(indev, LV_INDEV_TYPE_POINTER); /*Touchpad should have POINTER type*/
    // lv_indev_set_read_cb(indev, my_touchpad_read);

    /* Option 1: Create a simple label
     * ---------------------
     */
    lv_obj_t *label = lv_label_create(lv_scr_act());
    lv_label_set_text(label, "Hello Arduino, I'm LVGL!(V" GFX_STR(LVGL_VERSION_MAJOR) "." GFX_STR(LVGL_VERSION_MINOR) "." GFX_STR(LVGL_VERSION_PATCH) ")");
    lv_obj_align(label, LV_ALIGN_CENTER, 0, 0);

    /*hello waveshare label*/
    lv_obj_t *label_waveshare = lv_label_create(lv_scr_act());
    lv_label_set_text(label_waveshare, "Hello waveshare!");
    lv_obj_align(label_waveshare, LV_ALIGN_CENTER, 0, 20);

    /* Option 2: Try an example. See all the examples
     *  - Online: https://docs.lvgl.io/master/examples.html
     *  - Source codes: https://github.com/lvgl/lvgl/tree/master/examples
     * ----------------------------------------------------------------
     */
    // lv_example_btn_1();

    /* Option 3: Or try out a demo. Don't forget to enable the demos in lv_conf.h. E.g. LV_USE_DEMOS_WIDGETS
     * -------------------------------------------------------------------------------------------
     */
    // lv_demo_widgets();
    // lv_demo_benchmark();
    // lv_demo_music();
  }

  Serial.println("Setup done");
}

void loop()
{
  lv_task_handler(); /* let the GUI do its work */
  delay(5);
}

代码解释

setup () 函数 ：
- 基础设备与串口初始化
- 显示屏初始化与控制
- LVGL 核心与缓冲区配置
- UI 元素与扩展功能

Arduino 入门教程​

配置开发环境​

1. 安装和配置 Arduino IDE​

2. 安装库​

示例程序​

01_GPIO​

代码​

代码解释​

02_BlinkRGB​

代码​

代码解释​

03_GetchipID​

代码​

代码解释​

04_WIFI_AP​

代码​

代码解释​

05_WIFI_STA​

代码​

代码解释​

06_WIFI_DHCP​

代码​

代码解释​

07_WIFI_StaticIP​

代码​

代码解释​

08_lvgl8.4.0_demo​

硬件连接​

代码​

09_lvgl9.2.2_demo​

硬件连接​

代码​

代码解释​

Arduino 入门教程

配置开发环境

1. 安装和配置 Arduino IDE

2. 安装库

示例程序

01_GPIO

代码

代码解释

02_BlinkRGB

代码

代码解释

03_GetchipID

代码

代码解释

04_WIFI_AP

代码

代码解释

05_WIFI_STA

代码

代码解释

06_WIFI_DHCP

代码

代码解释

07_WIFI_StaticIP

代码

代码解释

08_lvgl8.4.0_demo

硬件连接

代码

09_lvgl9.2.2_demo

硬件连接

代码

代码解释
